External Wall Board

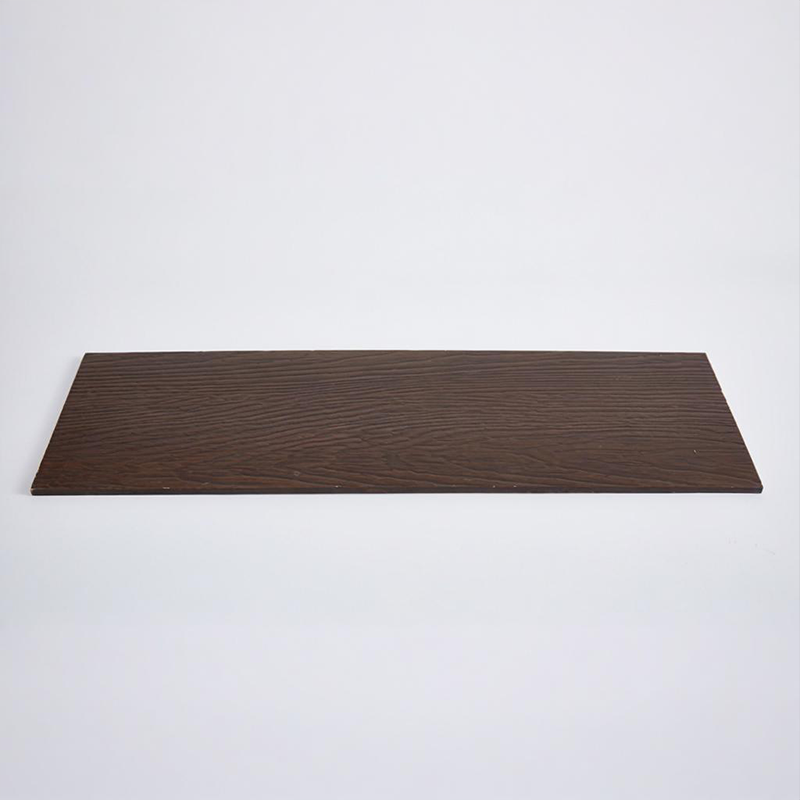

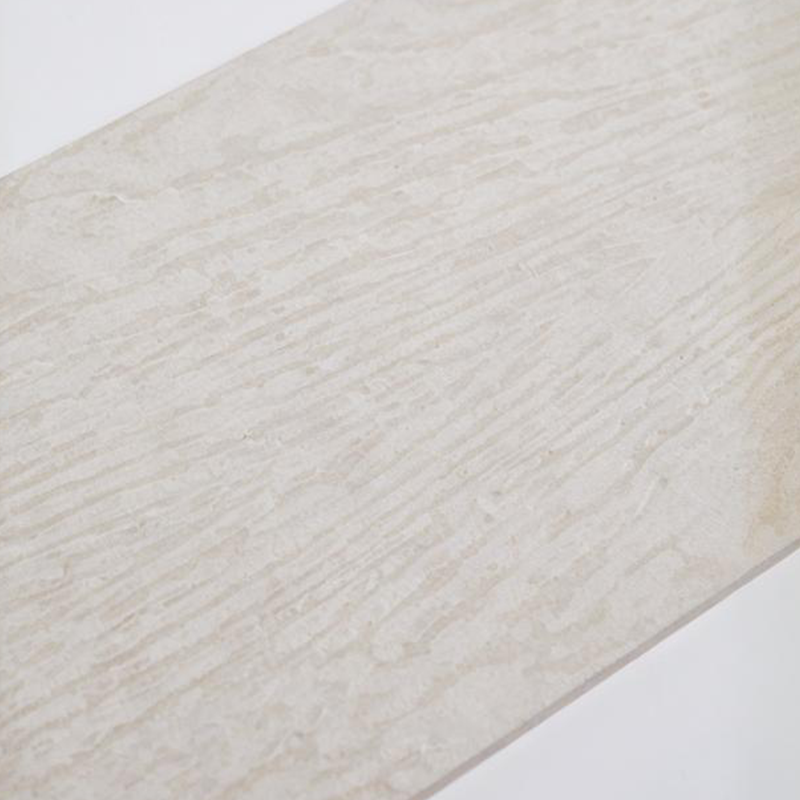

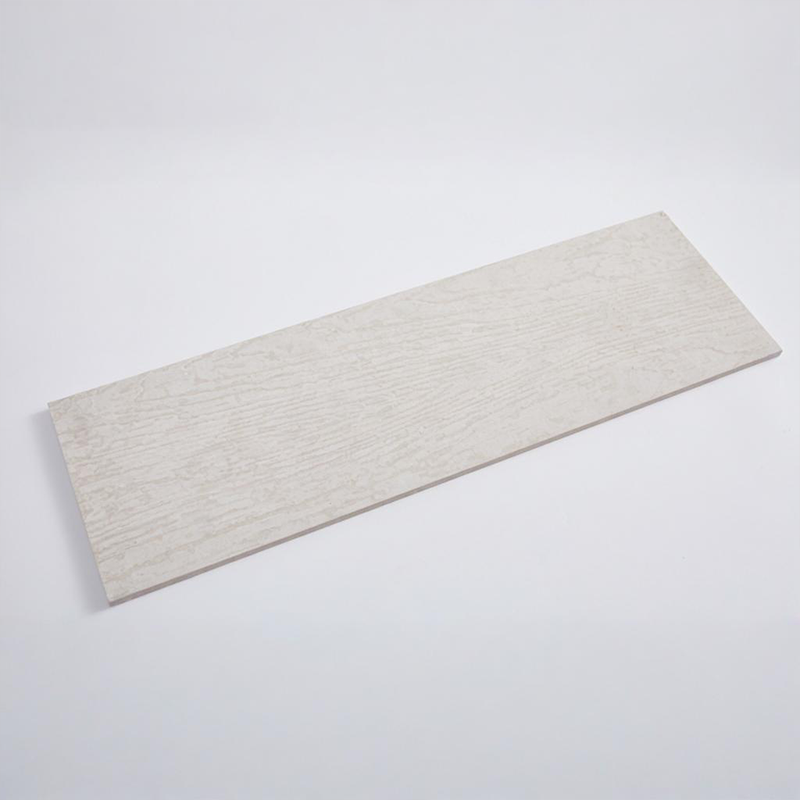

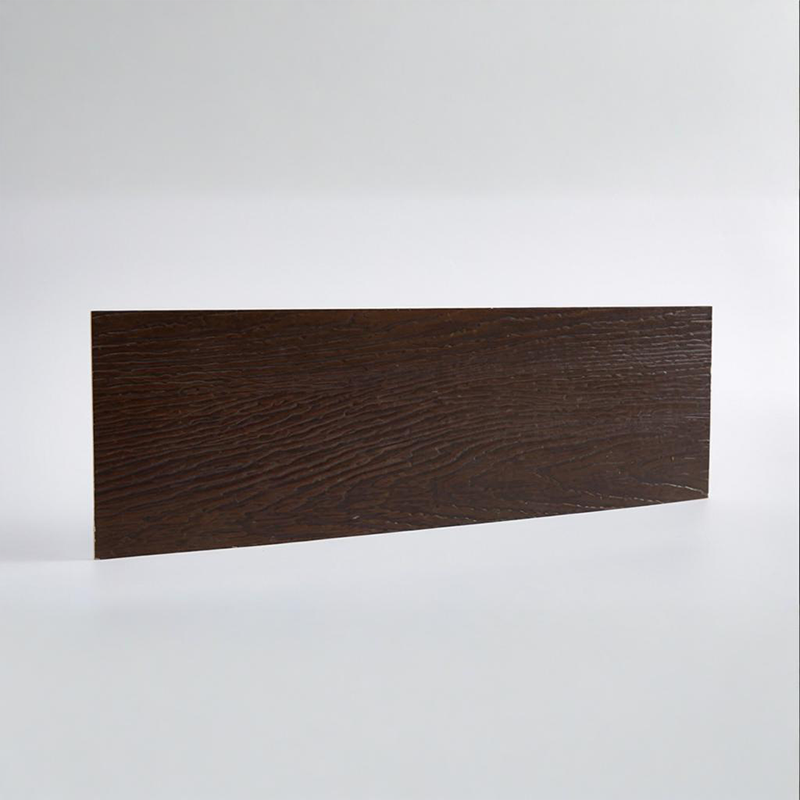

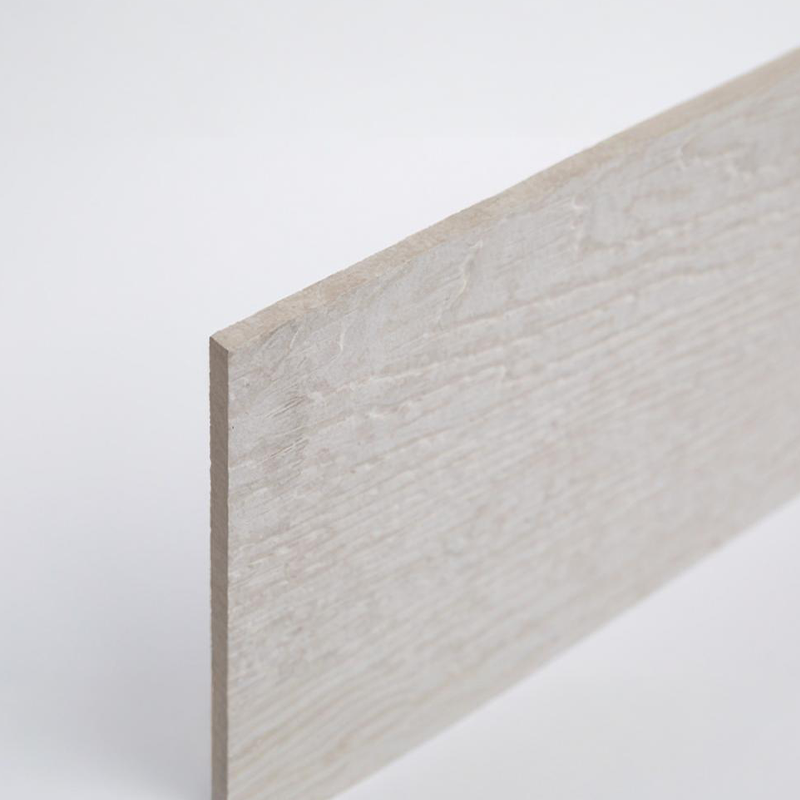

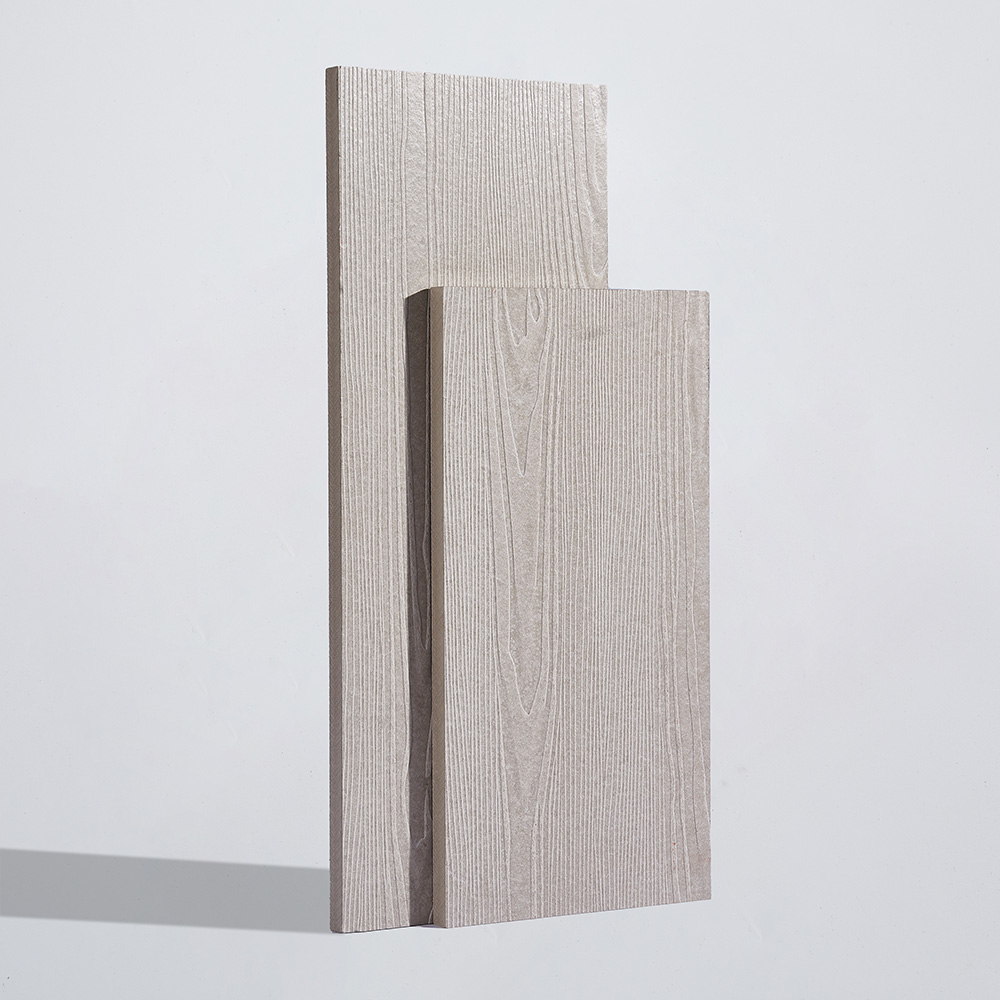

Siding Plank
Size
Length Width 3050mm 192mm 3050mm 241mm
Thickness
7.5mm , 9mm

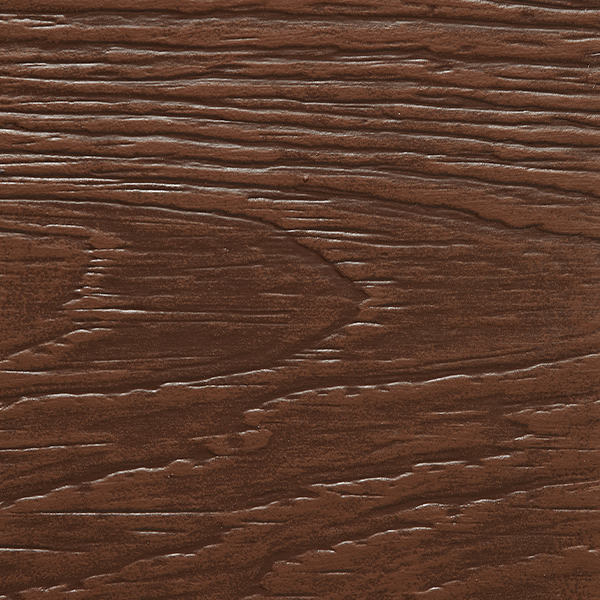

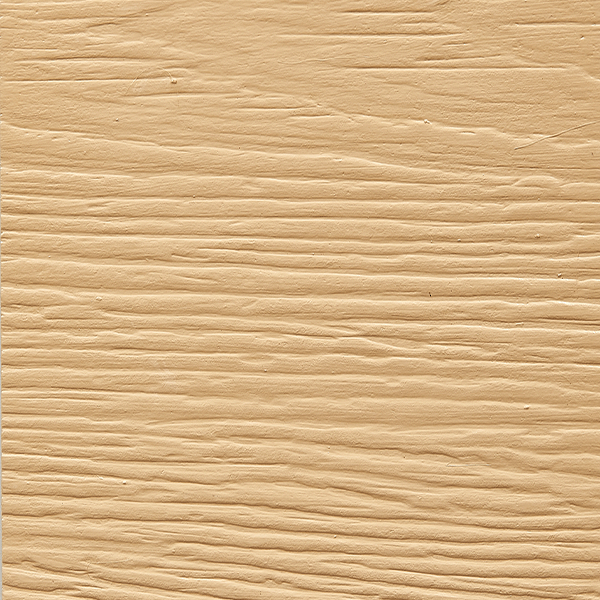

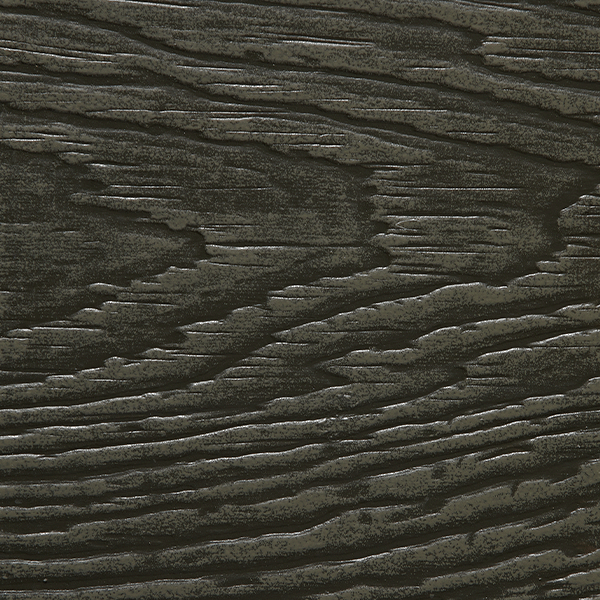

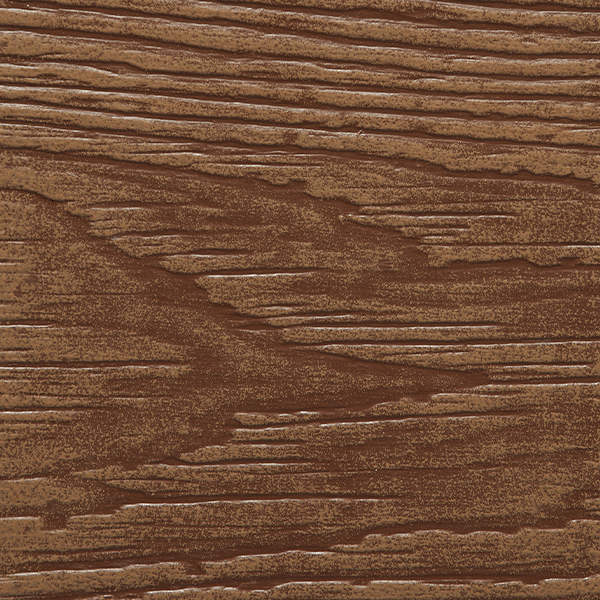

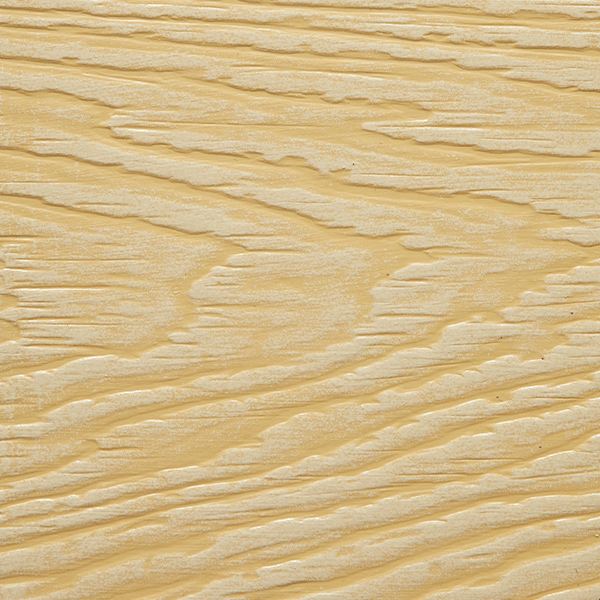

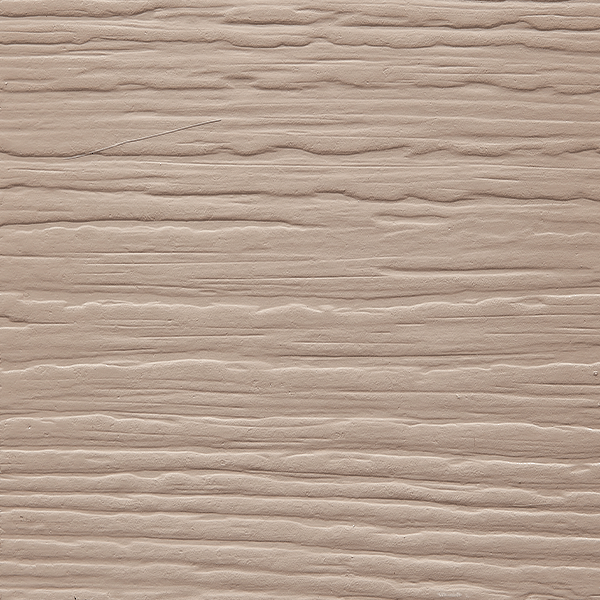

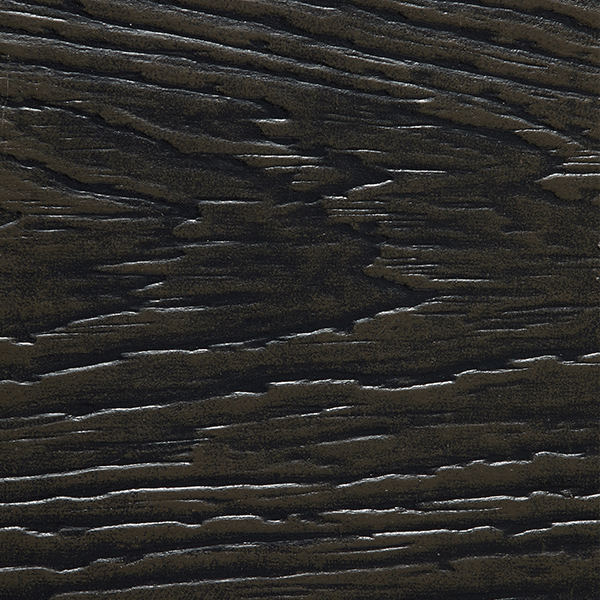

Select Color

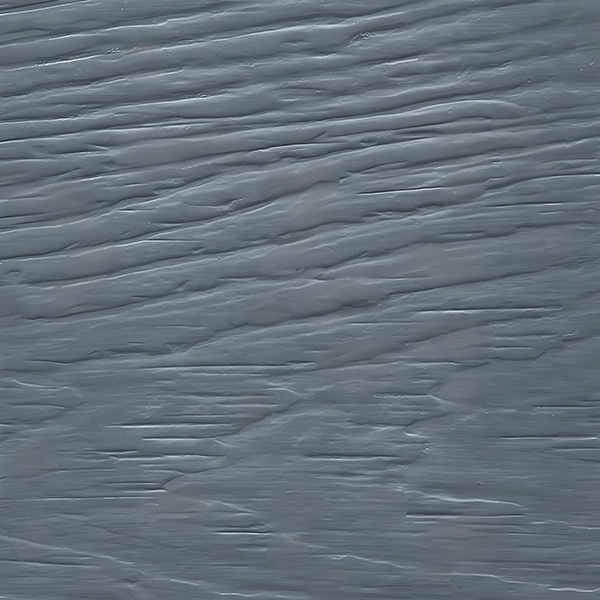

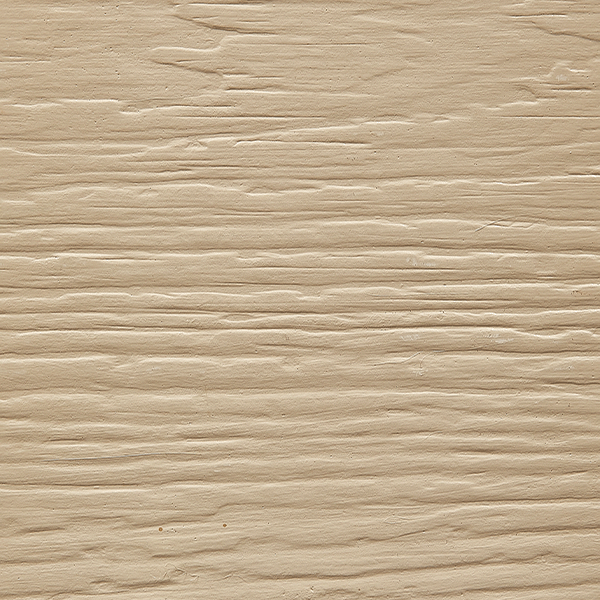

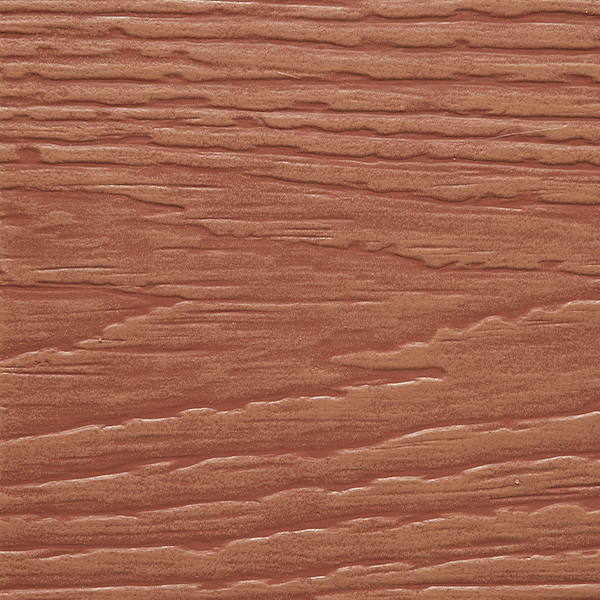

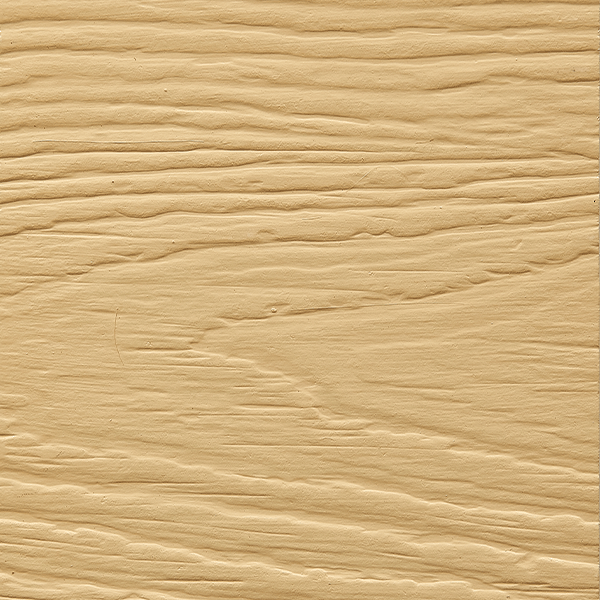

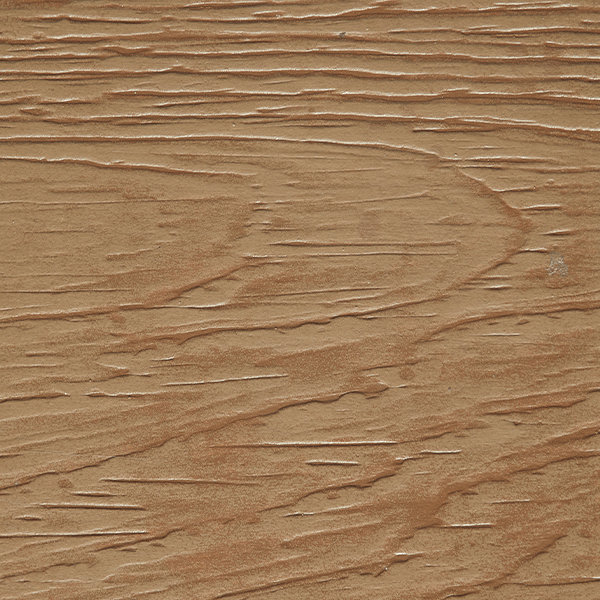

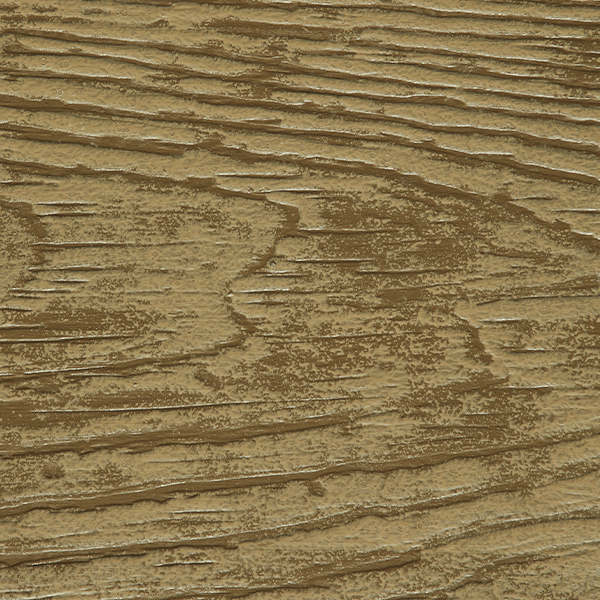

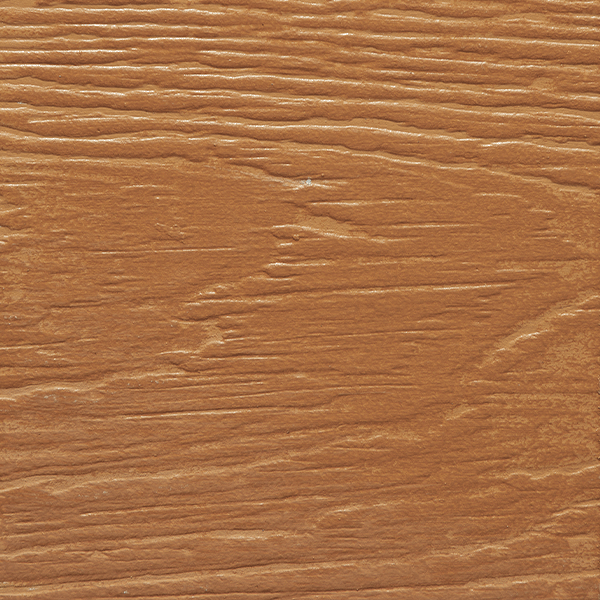

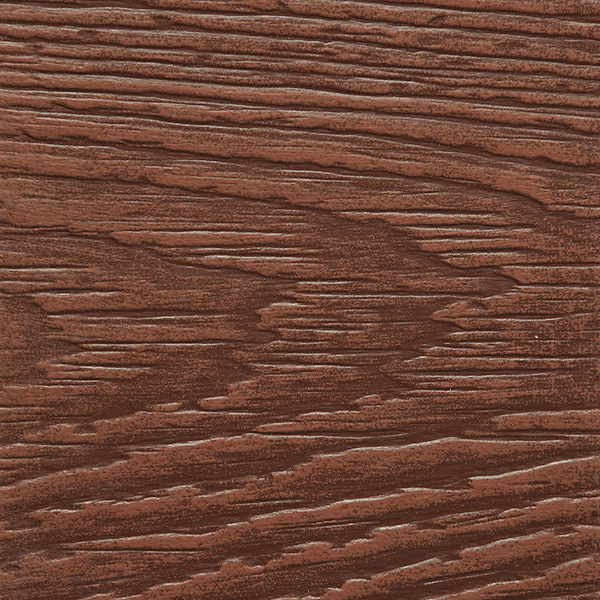

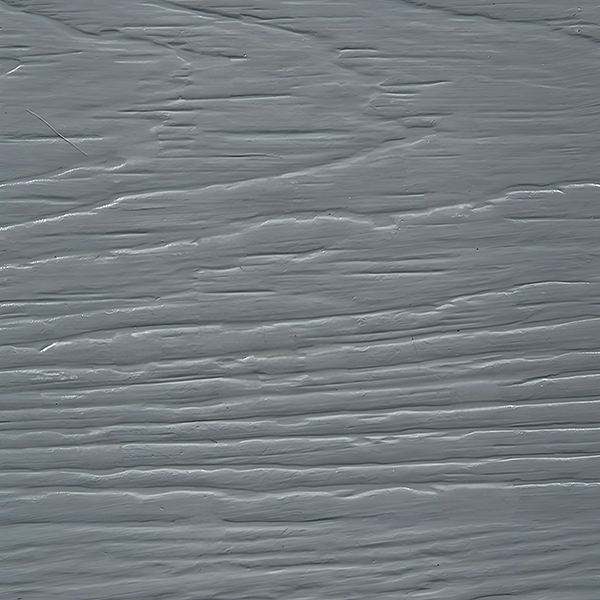

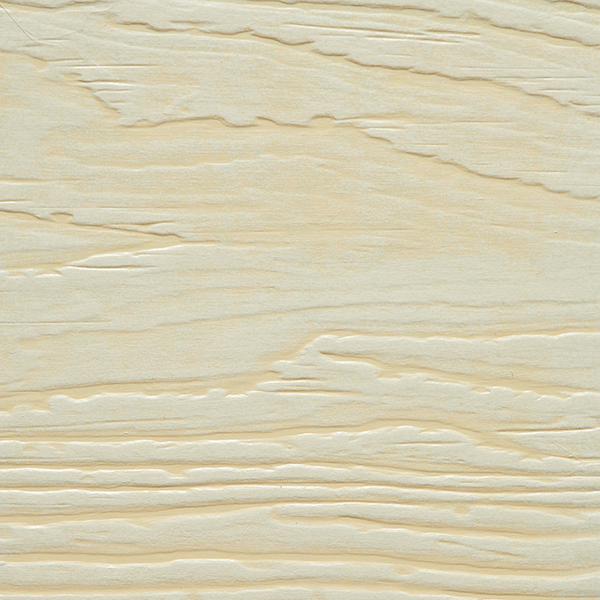

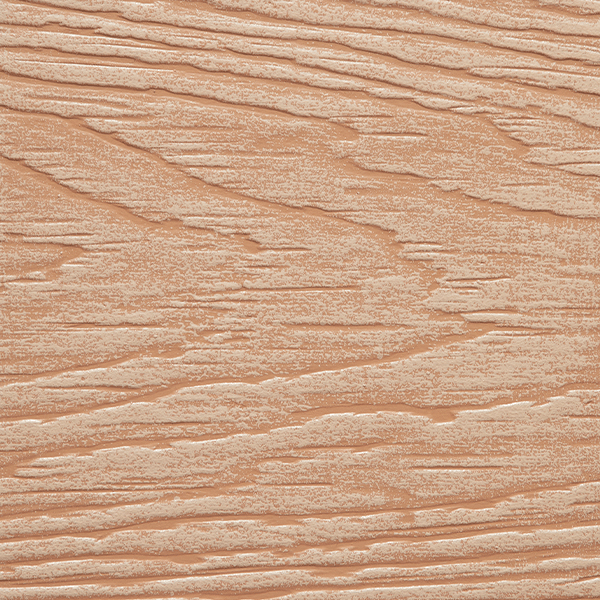

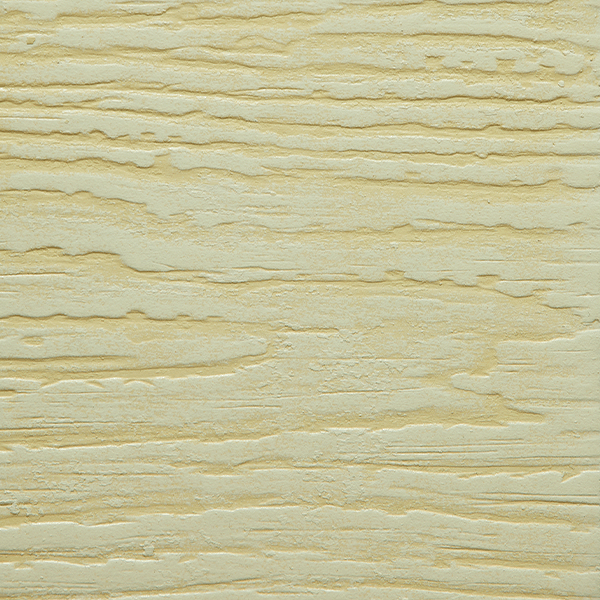

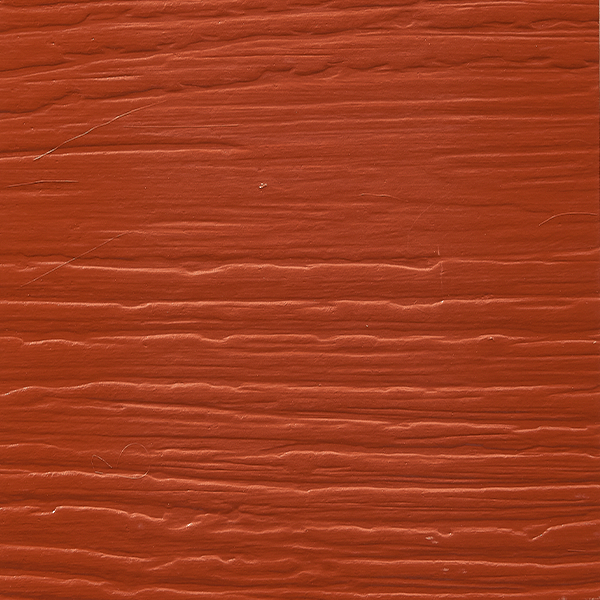

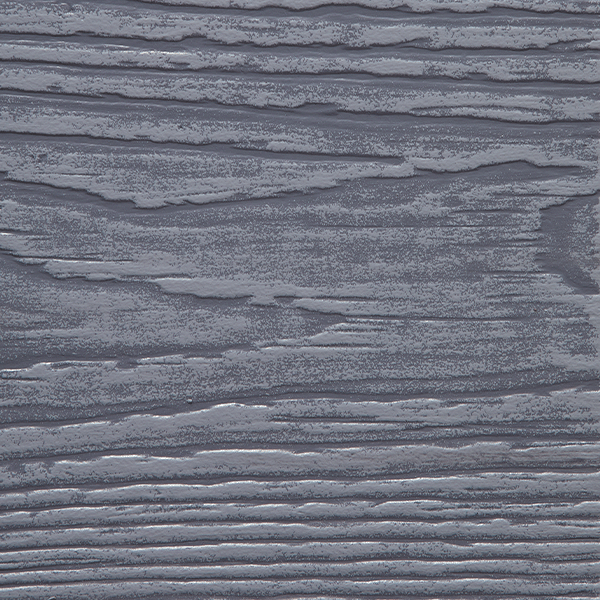

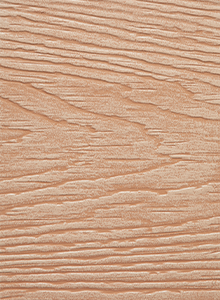

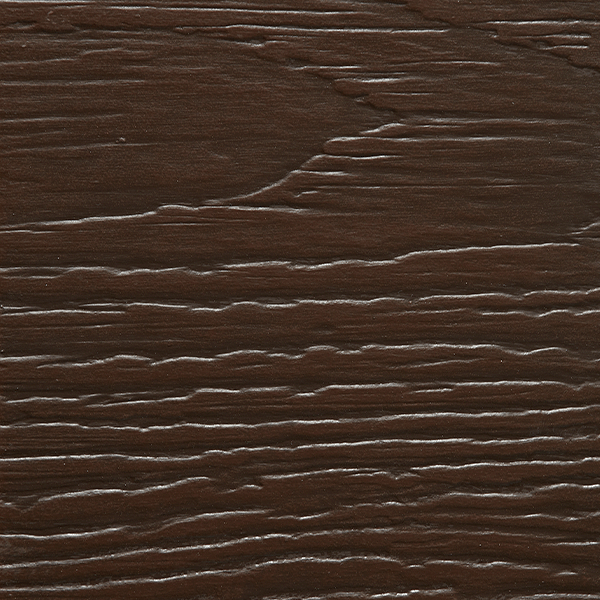

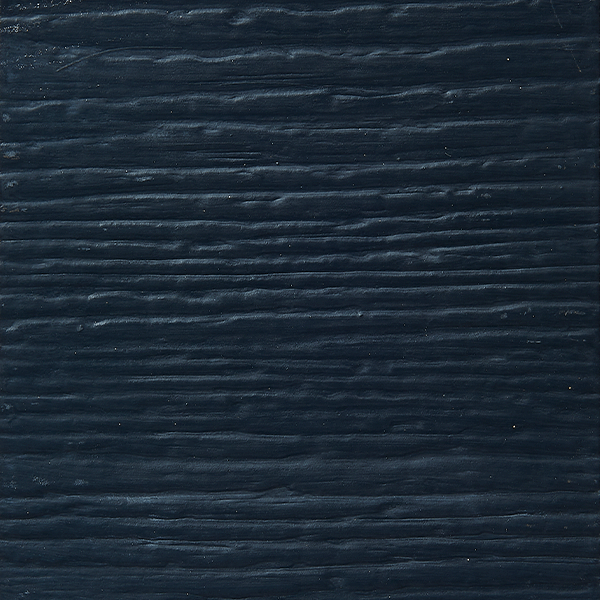

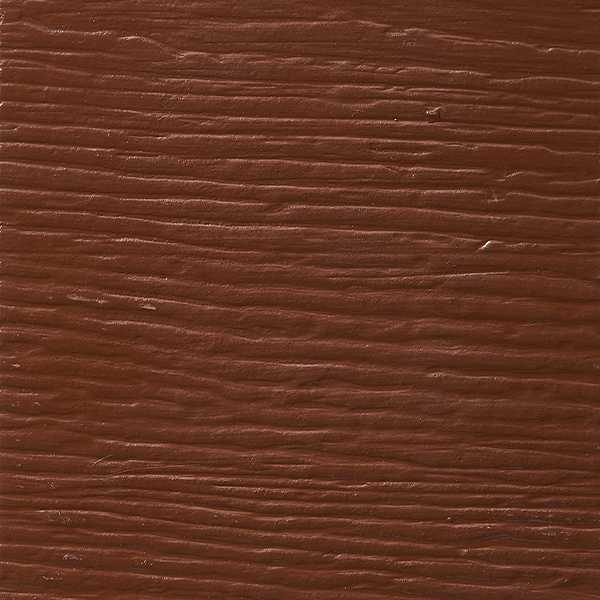

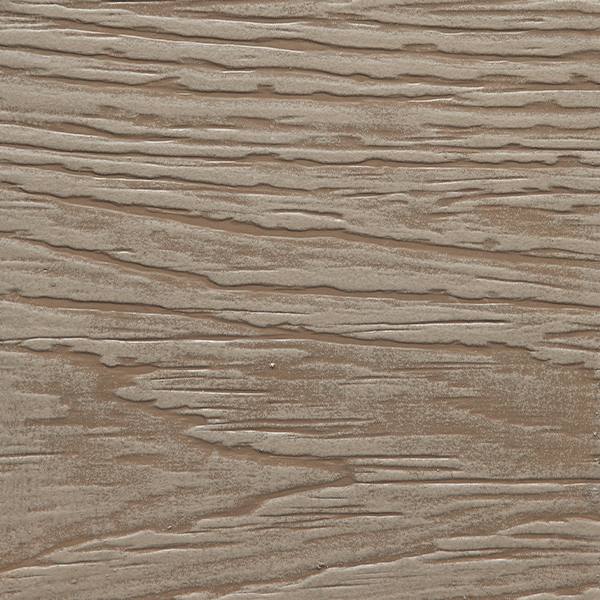

Select Texture

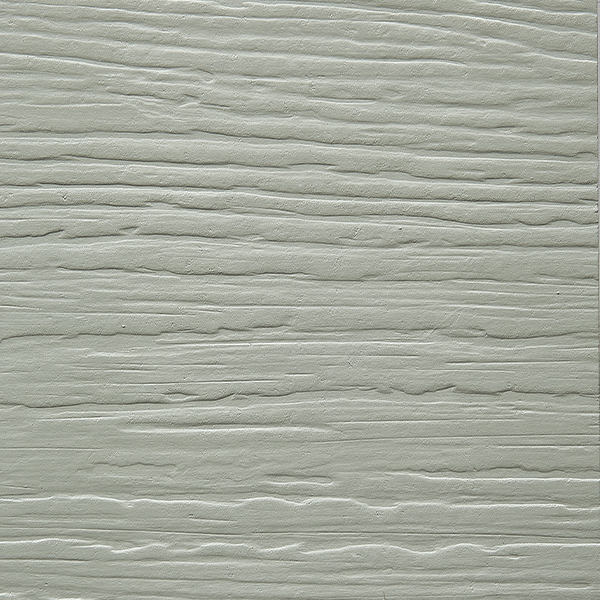

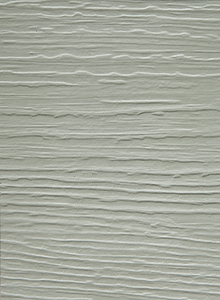

Showing: A1 / Monochrome
Technical Signature
| Property | Value |
|---|---|
| Density | ≥1.25 g/cm³ |
| Bending Strength (Water Saturated) | ≥12 Mpa |
| Bending Strength（Oven Dry） | ≥16 Mpa |
| Water Absorption (Fiber Cement Color) | ≤38 % |
| Moisture Movement | ≤0.25 % |
| Thermal Conductivity | ≤0.30 W/(m·k) |
| Water lmpermeability | Pass |
| Non-combustibility | ASTM C1186 |
| Freeze-thaw Cycles | Pass |
| Heat Rain Resistance | Pass |
| Warm Water | Pass |
| Soak -dry | Pass |
| Water Tightness | Pass |
| Radioactivity | lra < 1.0 ; Ir<1.0 |
| Asbestos Content | 100% Asbestos free |
Features & Benefits
Size
Length Width 3050mm 192mm 3050mm 241mm
Thickness
7.5mm , 9mm Please contact us for other dimensions. Contact us Get a quote
Low expansion and shrinkage
New Element’s calcium silicate and fiber cement boards feature low expansion and shrinkage, ensuring stability and preventing structural distortions from temperature changes. Ideal for applications such as cladding, fire protection, and partition walls, our boards maintain strength and form over time. With over 30 patents and a focus on sustainability, New Element provides reliable, high-performance solutions for demanding environments, offering long-term durability for construction projects.
Fire resistance
These boards are non-combustible and can withstand high temperatures, making them an ideal choice for fire protection in walls, ceilings, and floors. Their fire-resistant properties help prevent the spread of flames, offering valuable protection for both residential and commercial buildings. With their ability to meet stringent fire safety standards, these boards ensure a higher level of security and durability in fire-sensitive environments.
Moisture resistance
Their moisture-resistant properties help prevent warping, swelling, and degradation, ensuring long-lasting performance in applications such as exterior cladding, suspended ceilings, and bathrooms. These boards maintain structural integrity and aesthetic appeal, even in challenging conditions, providing reliable protection against moisture-related issues.
Weather resistance
New Element's calcium silicate and fiber cement boards are designed to withstand harsh weather conditions, offering exceptional durability in both extreme heat and cold. These boards resist damage from UV rays, rain, wind, and temperature fluctuations, ensuring long-term performance without degradation. Their weather-resistant properties make them perfect for exterior applications such as cladding and roofing, maintaining both structural integrity and aesthetic appearance over time.
Thermal insulated
New Element’s calcium silicate and fiber cement boards offer exceptional thermal insulation properties, effectively reducing heat transfer. This helps maintain a comfortable indoor temperature by keeping spaces cool in summer and warm in winter. Ideal for walls, ceilings, and floors, these boards enhance energy efficiency, reducing heating and cooling costs. Their thermal insulation capabilities make them a reliable and eco-friendly choice for projects aiming to improve comfort and energy performance.
Anti-termite
Because its primary components – cement, sand, and cellulose fibers – are not a food source for termites. This composition makes the boards inedible and resistant to pest infestation, contributing to the longevity and durability of buildings where they are used.
